Compare Models

Find Your QuickJack

Compare QuickJack Models

Choose any two QuickJack models to compare their dimensions, lifting capacity and fit side by side.

Measuring Guide All Model Specifications

Compare Side by Side

Select two models below to see which QuickJack fits your vehicle and garage.

First Model

Second Model

Not Sure Which Size You Need?

Take four simple vehicle measurements and use them to determine which QuickJack models are compatible with your vehicle.

Measure Your Vehicle

The QuickJack Lineup

Find the Right Lift for Your Garage

Every QuickJack is portable, low-profile and built with automatic mechanical safety locks. The right model comes down to your vehicle's weight, lifting-point spread and overall size.

Standard-Length Models

3,500-lb. Capacity

3500SLX

The Ultimate Track Lift

The smallest and lightest QuickJack in the lineup. Its compact frames make it easy to move around the garage or track and an excellent fit for smaller sports cars, compacts and race cars.

Lowered 3"

Max Height 21"

Lift Points 27"–50.5"

Frame Length 62.5"

More Details Compare

6,000-lb. Capacity

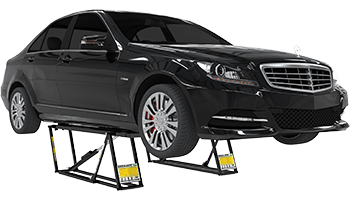

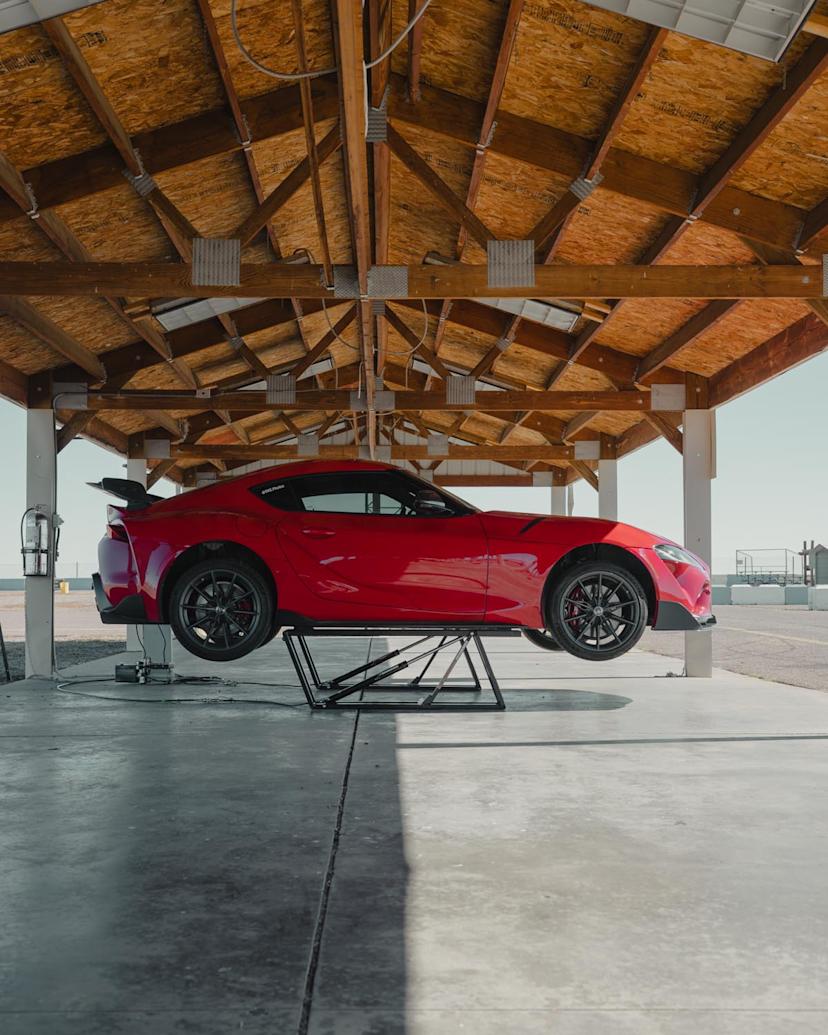

6000TL

Sports Cars, Sedans & More

A versatile standard-length QuickJack for a wide range of vehicles. Its 3-inch lowered height makes it especially useful for sports cars and other low-clearance vehicles.

Lowered 3"

Max Height 24"

Lift Points 37"–60"

Frame Length 70"

More Details Compare

8,000-lb. Capacity

8000TL

Light Trucks & SUVs

Heavy-duty lifting in a standard-length frame. The 8000TL adds capacity for heavier vehicles while retaining a low 3.5-inch collapsed height.

Lowered 3.5"

Max Height 24.5"

Lift Points 37"–60"

Frame Length 70.75"

More Details Compare

Extended-Length Models

6,000-lb. Capacity

6000TLX

Longer-Wheelbase Cars

The extended-length version of the 6000TL provides an additional 6 inches of reach for vehicles with lifting points farther apart.

Lowered 3"

Max Height 24"

Lift Points 43"–66"

Frame Length 76"

More Details Compare

8,000-lb. Capacity

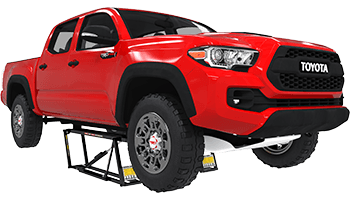

8000TLX

Longer-Wheelbase Trucks & SUVs

The extended version of the 8000TL combines 8,000-lb. lifting capacity with additional reach for longer trucks, vans and SUVs.

Lowered 3.5"

Max Height 24.5"

Lift Points 43"–66"

Frame Length 76"

More Details Compare

6,000-lb. Capacity

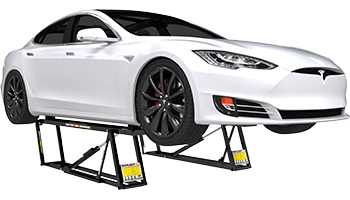

6000ELX

EVs & Extra-Long Wheelbases

The longest QuickJack frame is designed for vehicles with lifting points positioned farther apart, including many longer-wheelbase vehicles and EV applications.

Lowered 3.5"

Max Height 24.5"

Lift Points 53"–76"

Frame Length 86.75"

More Details Compare

Still Not Sure Which QuickJack?

Measure your vehicle first, then compare those measurements with the QuickJack models above. If you still need help, our team can help point you in the right direction.

Measuring Guide Contact Us
