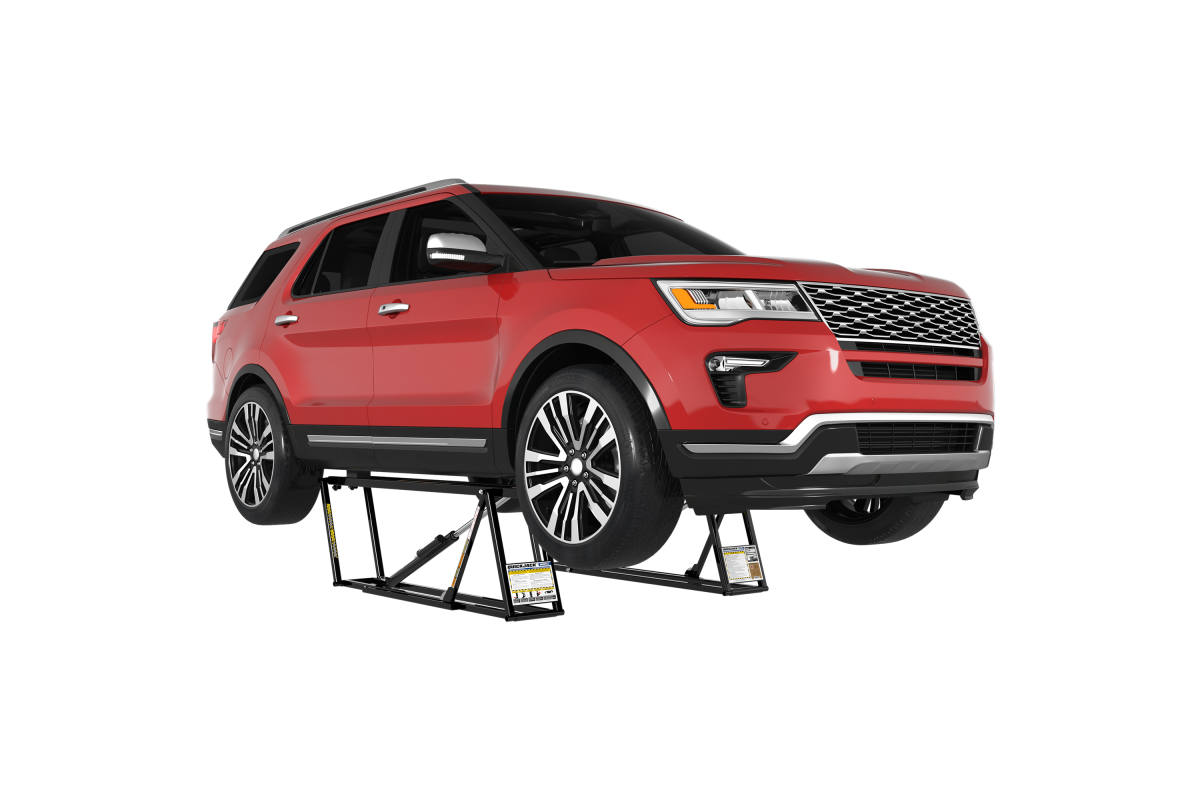

QuickJack 6000TLX Extended Portable Car Lift - 6,000-lbs. Capacity
The QuickJack 6000TLX portable car lift features an extended 76-inch frame and increased 6,000 lbs. lifting capacity, providing added reach for servicing more vehicle types. Ideal for home garages, auto shops, and enthusiasts working on cars, SUVs, and light-duty trucks.
Capacity (lbs)
Lifting Height
Frame Length
Overview
6000TLX Extended-Length Portable Car Lift System
The QuickJack 6000TLX portable car lift is the ultimate solution for lifting longer-wheelbase vehicles, offering an extended 76-inch frame and a boosted lifting capacity of up to 6,000 lbs. This makes the 6000TLX ideal for SUVs, light-duty trucks, and vehicles with manufacturer-recommended lift points just beyond the reach of standard-length lifts.
Engineered with a newly redesigned electric/hydraulic power unit featuring a pressure-compensated flow divider, the 6000TLX lifts and lowers in perfect synchronization. Structural upgrades include thicker cross members, enhanced weld geometry, and reinforced pivot joints, delivering unmatched stability and durability. Whether you're in a professional auto repair shop or your home garage, the 6000TLX provides ample clearance, reliability, and versatility for all your automotive tasks.
Looking for even more lifting power with extended reach? Check out the 8000TLX portable truck lift.
The setup for the QuickJack 6000TLX remains simple and intuitive, featuring automatic dual-position safety locks, a quick 30-second lift cycle, and a user-friendly one-handed pendant control. Although the 6000TLX frame extends an additional 6 inches, it maintains QuickJack's signature slim profile for easy storage. Measure your vehicle’s wheelbase carefully to ensure optimal fit—especially important for compact or very short wheelbase vehicles.
EXTENDED-LENGTH Portable Car Lift Design
The QuickJack 6000TLX is specifically engineered to accommodate vehicles requiring a longer lift point reach. The increased frame length and lift point spread offer unmatched flexibility for servicing a broader range of vehicles.
TL minimum lift point spread: 37"
TLX minimum lift point spread: 43"
TL maximum lift point spread: 60"
TLX maximum lift point spread: 66"
TL overall frame length: 70"
TLX overall frame length: 76"
What's improved on the NEW TLX Models vs. previous TLX Models?
The new 6000TLX delivers significant improvements, including increased lifting capacity (up from 5,000 lbs. to 6,000 lbs.), structural enhancements, and an upgraded hydraulic system for safer, smoother, and faster lifting. Despite these improvements, QuickJack maintains the 3" low-profile height that customers love for easy storage and maneuverability.
I already own a QuickJack—can I purchase the frames separately?
Yes! Frames for the 6000TLX are available individually without the power unit, making it easy to upgrade your existing QuickJack system. Be sure to follow recommended bleeding procedures before operation. Individual frame purchases include only the frames, without additional support equipment.
Purchase 6000 and 8000-Series Frames
How soon will my 6000TLX ship?
The QuickJack 6000TLX is currently in stock and ready to ship within 1-2 business days of your order. Get lifting sooner!
What warranty coverage do TLX models include?
Every QuickJack TLX model includes a standard 1-year warranty on structure and operating components. An optional 2-year extended warranty is also available for added peace of mind. Learn more about QuickJack warranty.
Features
Factory preassembled hydraulics
The 6000TLX arrives with its hydraulic system fully preassembled at the factory, eliminating setup headaches and ensuring flawless performance right out of the box. Just connect and start lifting.
Automatic safety locks
The 6000TLX features dual-position automatic safety locks that engage securely as the frames rise—locking in at both mid-rise and full-rise heights. To lower, simply flip the lock bar and enjoy a smooth, controlled descent every time.
Increased lifting height & extended reach
With a 24-inch lift height and an extended 76-inch frame, the 6000TLX offers additional clearance and reach for vehicles with longer wheelbases. Great for lifting cars, light-duty trucks, and SUVs with wide lift point spreads.
Upgraded hydraulic system
The newly engineered power unit features a pressure-compensated flow divider and independent shut-off solenoids. This ensures synchronized frame movement and eliminates the risk of imbalance, even when stopping mid-cycle.
Structural reinforcements
Thicker cross members, improved weld geometry, and upgraded pivot joints improve frame rigidity under heavy loads, reduce flex, and increase long-term durability—essential for repeated use on heavier vehicles.
One-handed operation
The pendant control allows you to raise and lower your portable car lift with just one hand. No manual cranking, bending, or extra tools required—just push a button and go.
Compact and mobile
Despite its extended size, the 6000TLX maintains QuickJack’s trademark low profile and portability. Urethane wheels let you roll and stow the lift easily, making it perfect for tight garage spaces or mobile service work.
Accessories to increase versatility
Compatible with all major QuickJack accessories, including SUV adapters, pinch-weld blocks, and motorcycle/ATV kits. Customize your lift to match your specific vehicle types and service needs.
Tech specs
Lifting capacity
Lowered height
Lifting height
Lift point spread
Frame dimensions (ea.)
Other specs
79.5" (L) x 15.25" (W) x 5" (H)
(2,015 mm x 385 mm x 129 mm)
What's inside?
6000TLX is shipped in three boxes:
Box 1
6000TLX Left Frame Assembly
1x Short hydraulic hoses
1x Frame-positioning handles
Box 2
6000TLX Right Frame Assembly
1x Short hydraulic hoses
1x Frame-positioning handles
Box 3
1x Hydraulic power unit with control
4x Medium rubber lift blocks (2")
4x Tall rubber lift blocks (3")
2x Long hydraulic hoses
Setup and instruction manual
ALI-certified manuals: "Lifting It Right" Safety Manual, Lifting Points Quick Reference Guide, and Safety Tips Cards
Note: all hydraulic hose fittings come pre-assembled from the factory.
Requirements:
Up to 3 liters of Automatic Transmission Fluid
Air source to inflate air cylinders up to 50 PSI
Assembly tools
